Direct print
Printed directly on the cover with two protective top coats: scratch-resistant, anti-slip, with a minimal joint. Looks like wood, stone, ceramic or metal.
The system
Engineered from the tile up.
A modular raised floor of 50 × 50 cm polycarbonate tiles. Light to carry, strong to stand on, tool-free to install — and ready for every cable.

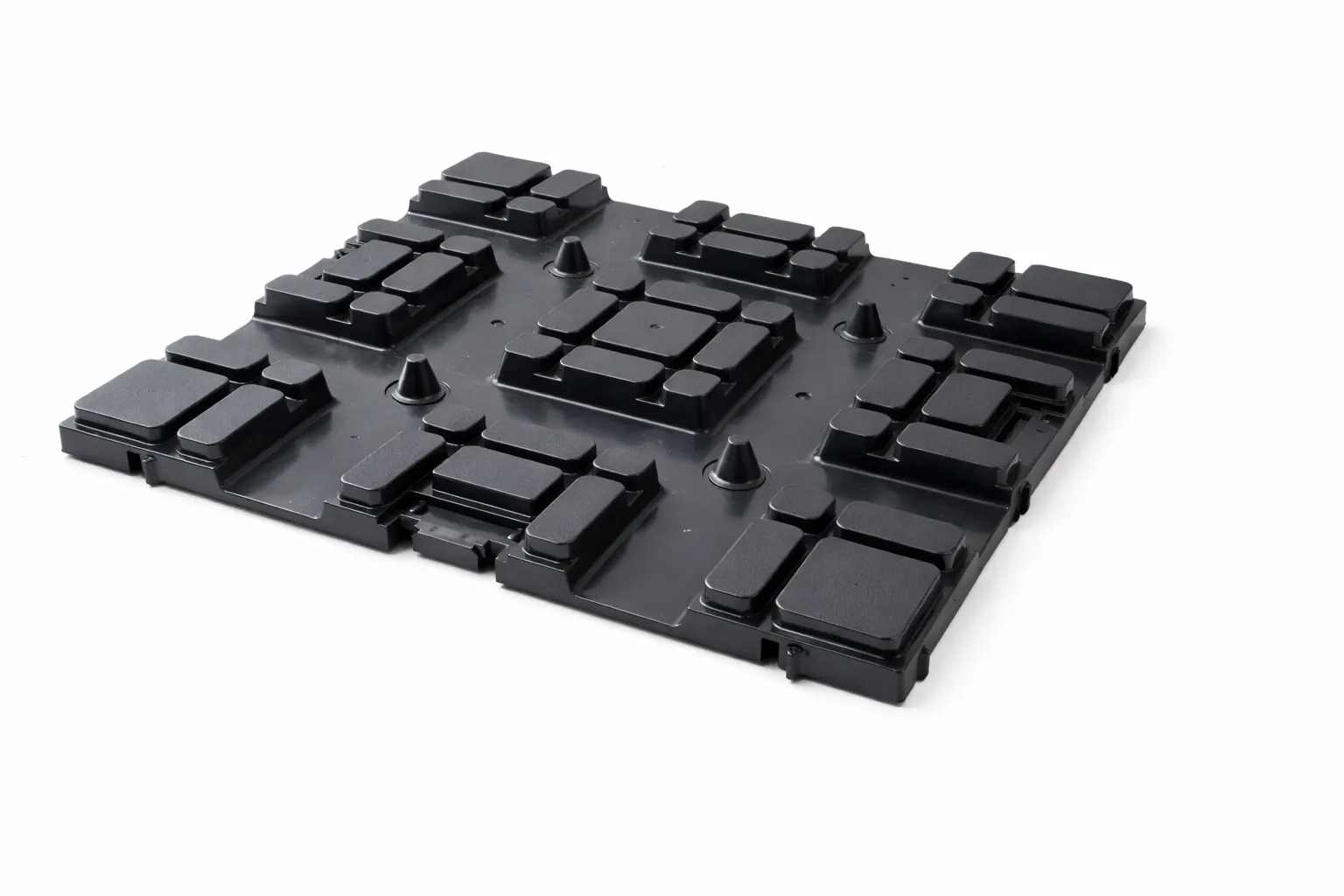

Base tile
Light to carry. Strong to stand on.
Each tile weighs just 1.5 kg and the floor carries up to 3,600 kg/m². The tile is self-supporting and levels most uneven floors.
- Size
- 50 × 50 cm
- Weight
- 1.5 kg per tile
- Material
- Polycarbonate
- Height
- 26 mm / 30 mm with cover plate
- Load capacity
- 3,600 kg/m² (900 kg per tile)
- Fire class
- B1, tested by TÜV Rheinland
Click connector & self-levelling
Click. Level. Done.
Tiles lock together with a tool-free click system, so one person can install. The floor is self-supporting and levels most uneven floors.
- No tools needed
- One person can install
- Up to 7× faster than a wooden floor

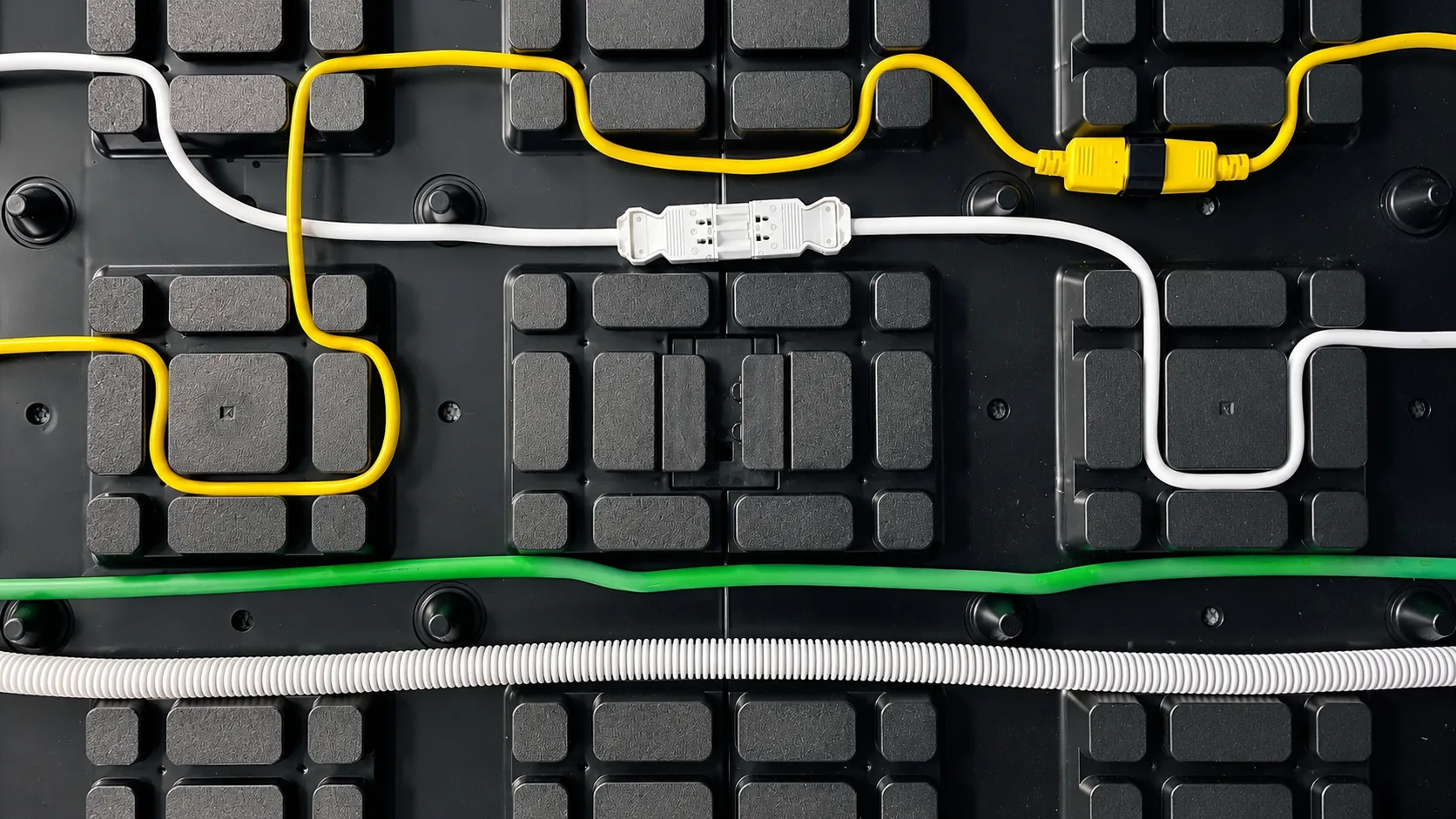

Cable management
Every cable, out of sight.
Cables and pipes run inside the tile, under the cover plate — no tape, no cable ducts on top of the floor.
- Power cables CEE 5×2.5 mm² and 5×6 mm²
- Flat cable 5G6 H07RN-F
- Wieland connectors
- Water pipes up to 20 mm
Cover plates
The look is on top.
Clear covers
Transparent covers for interchangeable prints — change the look without changing the floor.
Carpet, vinyl & wood
Prefer a classic finish? The tiles also take carpet, vinyl and wooden panels.
The system
Step 1/5 — Base tile
- 1Base tile50 × 50 cm polycarbonate tile, 1.5 kg. Self-supporting and levels most uneven floors.
- 2Click connectorOne tool-free click connector per side locks the tiles together, so one person can install.
- 3CablesPower cables, flat cables and water pipes up to 20 mm run inside the tile.
- 4Cover plateDirect print with two protective top coats — or a clear cover, carpet, vinyl or wood.
- 5Design edgeFinish with aluminium edges — straight, sloping or with LED.
50 × 50 cm polycarbonate tile, 1.5 kg. Self-supporting and levels most uneven floors.

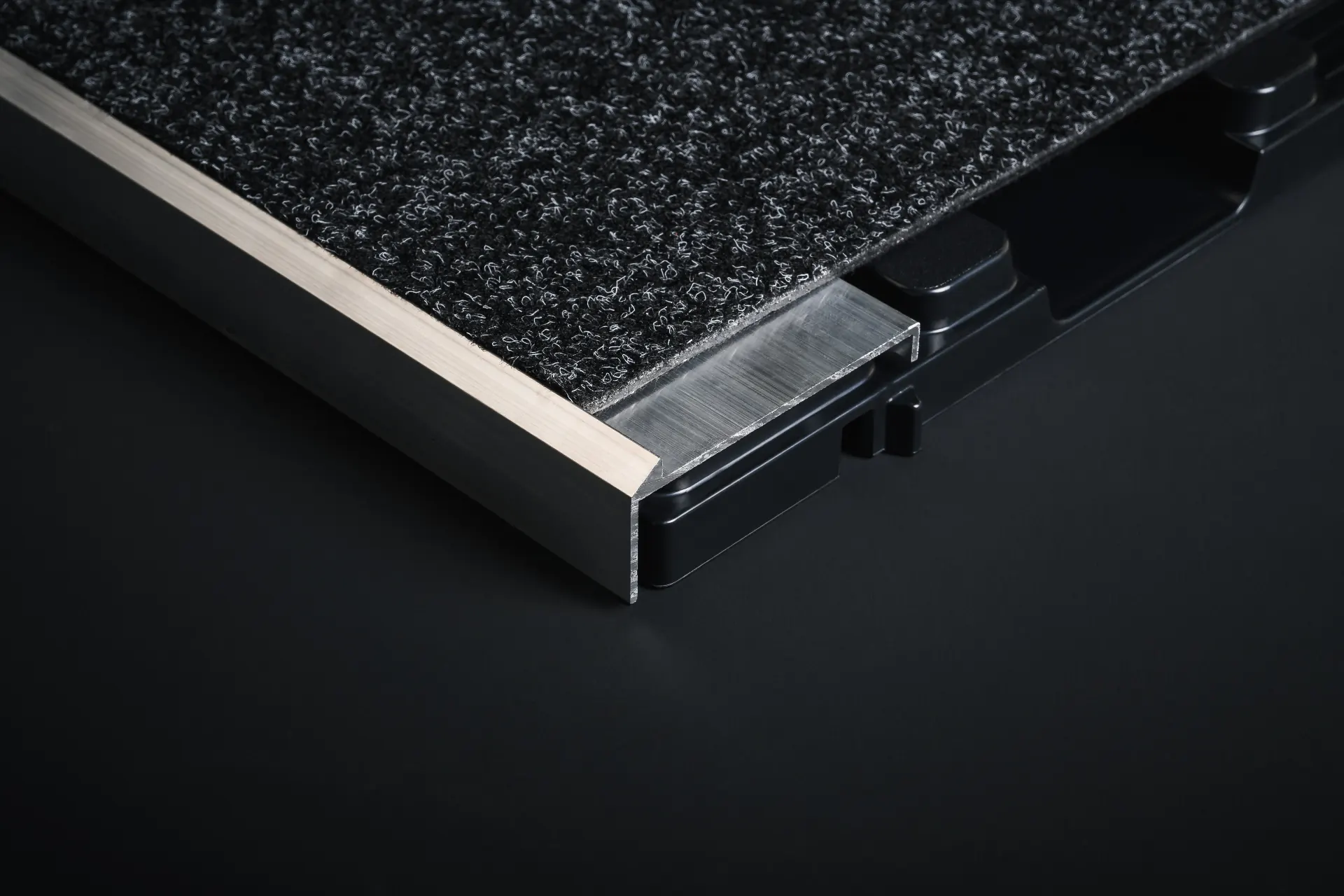

Edges
A clean finish on every side.
Seven edge profiles for every transition — from straight aluminium to the sloping LED edge.
- Aluminium straight
- Aluminium sloping small
- Aluminium sloping big
- Aluminium variable straight
- Aluminium sloping LED
- Carpet edge
- ABS sloping edge

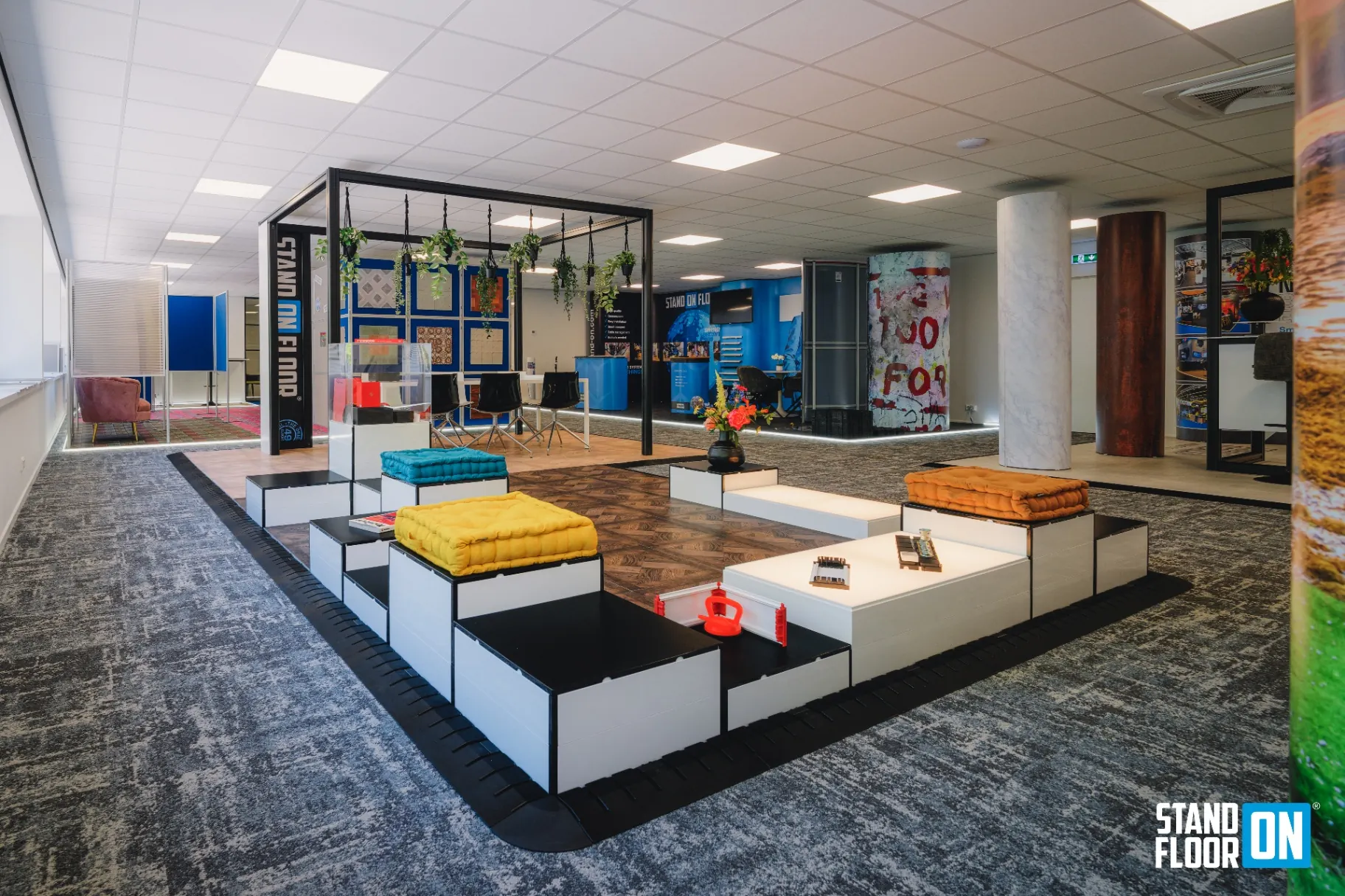

Smart Cubes
Build up from the floor.
Aluminium Smart Cubes with a visible height of 10 cm. Stackable up to 3–4 m, and also available open on 1 or 2 sides for counters and cabinets.
Sizes
- 50 × 50 cm
- 50 × 100 cm
- 100 × 100 cm
The film
Raised flooring on every location.
74 seconds on how the floor system works.
Configure your stand floor.
Combine size, decor, edges and Smart Cubes in the 3D configurator.
